The Charpy impact test is one of the most widely used mechanical tests in industry to assess a material's ability to withstand sudden impacts without breaking.
In this comprehensive guide we will examine how the Charpy test works, the reference standards, the advantages of the method and its applications across different production sectors.
The Charpy test is a destructive test used to determine a material's impact toughness. The principle is simple: a pendulum is released from a predetermined height and strikes a notched specimen until it causes fracture.
The energy absorbed during fracture represents the material's resilience value and is generally expressed in Joules (J).
This test is particularly important to evaluate the behavior of materials subjected to:

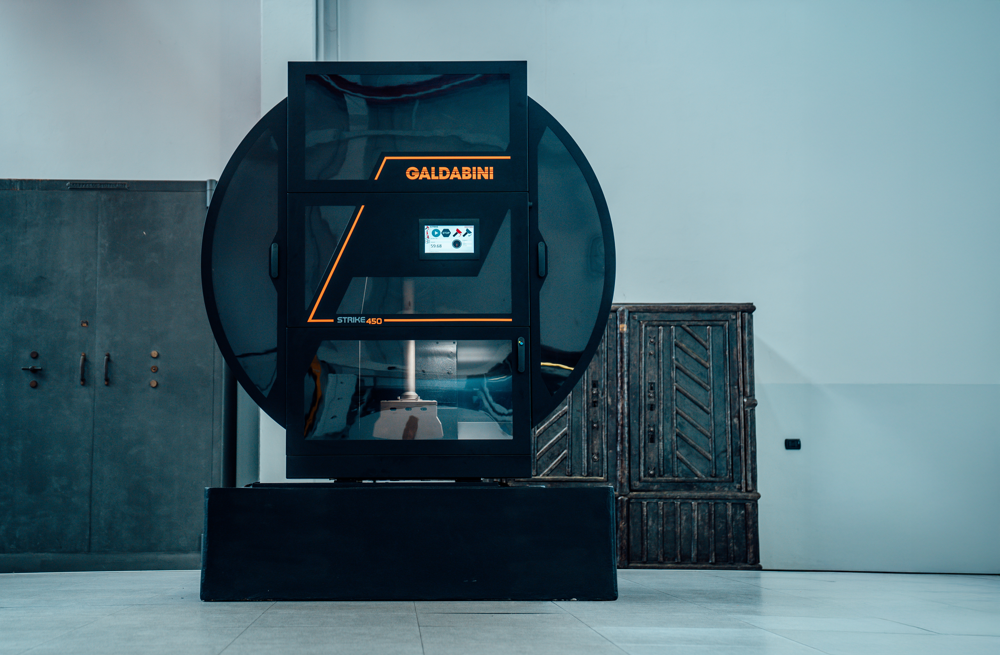

The so-called resilience pendulum is the main element of the Charpy test.
A Charpy apparatus consists of:
The test is carried out following a precise sequence:
The energy loss corresponds to the energy used to break the material.
To ensure comparable results, the specimen must comply with dimensions and geometries defined by the standards.
Generally the sample has:
The main result of the test is the energy absorbed by the specimen during fracture.
A resilient material:
A brittle material:
The higher the recorded value, the better the material's impact resistance will be.
One of the most important aspects of the Charpy test concerns the evaluation of the ductile-brittle transition temperature.
Many steels indeed exhibit different behaviors as temperature changes:
For this reason the test is often performed at different temperatures, allowing the construction of resilience curves useful for industrial design.
Charpy tests are regulated by international standards that ensure uniformity and repeatability of results.
The main standards include:
International standard for the impact test on metallic materials using a pendulum.
Standard widely used in the North American market to determine the impact resistance of metallic materials.
Historic European reference, now largely integrated into ISO standards.
Compliance with the standards is essential for certifications, quality controls and process qualifications.
The Charpy test is often compared with the Izod test.
The main differences concern:
| Characteristic | Charpy test | Izod test |
| Specimen positioning | Horizontal | Vertical |
| Type of support | Two supports | Single support |
| Impact point | Opposite side to the notch | Notch side |
Both tests measure the energy absorbed during fracture, but they follow different procedures.
The Charpy impact test is fundamental in numerous production fields.
It allows evaluation of:
Components intended for pipelines and gas pipelines must guarantee high toughness even in extreme environments.
Power plants, turbines and industrial plants require materials with high impact energy absorption capacity.
The test is used to verify material behavior in the event of impacts and collisions.
Resilience is an essential parameter for structural safety and component reliability.
The use of the resilience pendulum offers numerous benefits:
For these reasons the test continues to be one of the most used methods in testing laboratories and quality control departments.
Despite its widespread use, the Charpy test has some limitations:
For a complete characterization of the material it is often necessary to supplement with other mechanical tests.
It is used to measure the amount of energy a material is able to absorb during an impact before breaking.
It is the machine used to perform the Charpy test, consisting of a pendulum that strikes the specimen and causes it to fracture.
The absorbed energy is generally expressed in Joules (J).
The notch creates a stress concentration that facilitates a controlled initiation of the fracture.
Primarily metals and alloys, but there are versions of the method applicable to polymers and composite materials as well.
