Materials testing machine
Test programming and results monitoring can be controlled through the Labtest software, which enables complete and accurate data management according to International Standards (European, North American and others).
This instrument is suitable for use both on production lines, where the operator can precisely control the test via the remote control, available as an optional accessory, and in testing laboratories, where Labtest allows users to analyze test data. Labtest enables full control of data processing, storage, management and transmission to the company's network database, in addition to performing many other functions.

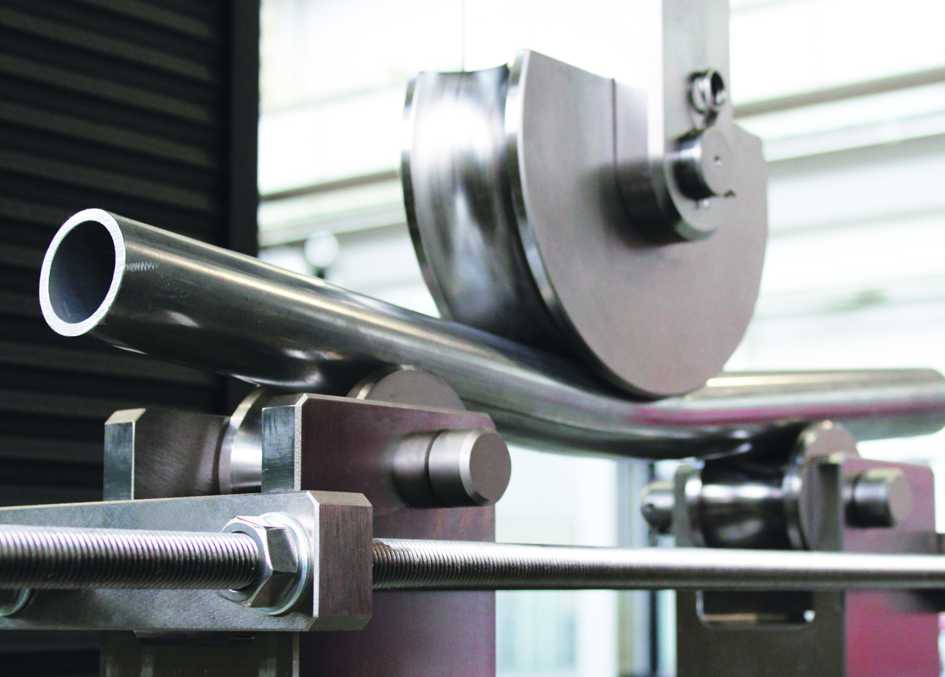

This Quasar frame has a flexible and modular construction. It can be equipped with various fixtures, in addition to extensometers, supplementary load cells, thermostatic chambers and many other accessories, suitable for a wide range of applications (tension, compression, bending, etc.). Furthermore, this intuitive instrument can be fitted with additional load cells of lower capacity, ensuring maximum resolution and precision for micro-loads.
| Capacity of frame and max allowed load | 600 kN (134,885 lbf) |
| Load cell nominal size (tensile & compression) |
750 kN |
| Standards met or exceeded | ISO 7500-1, ASTM E4, EN 10002-2, JIS B7721, GB/T 16825.1, DIN 51221, BS 1610 and other equivalent |
| Testing area depth | Unlimited |
| Power Rating | 3,000 W (7,000 W with optional item) |
| Machine weight (without accessories) | 2,000 Kg (4,400 lb) |
| Finishing | Silver RAL 9006 / Black RAL 9011 |
| PC interface | Ethercat (A dedicated Ethernet port on PC is required) |
| Noise level |
< 72 db |
| Height | 2,852 mm |
| Width |
1,328 mm |
| Depth | 854 mm |
